Chemical-resistant floors · Karachi · Pakistan
Acid Proof Tiling Services in Pakistan
Layered protection for industrial floors, foundations and containment areas using rubber coating, acid-proof cement and acid-resistant tiles.
Built as a complete system
Chemical protection begins below the finished tile
Acid proof tiling is more than a surface finish. Rubber Tech Plus prepares the substrate and builds the specified protection in sequence, so the coating, acid-resistant cement and tile layer work as one system around the project duty.
Project benefits
- Layered chemical-resistant protection
- Hard-wearing tiled working surface
- Detailing around plinths, drains and equipment
- System selection based on actual process exposure
Installation sequence
Rubber coating. Acid-proof cement. Acid-proof tiles.
- 01
Rubber coating
A compatible rubber coating is applied over the prepared substrate to establish the first protective barrier.
- 02
Acid-proof cement
Acid-resistant cement is placed as the bedding and bonding layer according to the approved system.
- 03
Acid-proof tiles
Tiles or bricks are laid, aligned and jointed to complete the hard-wearing chemical-resistant surface.
Applications
Protection for demanding process areas

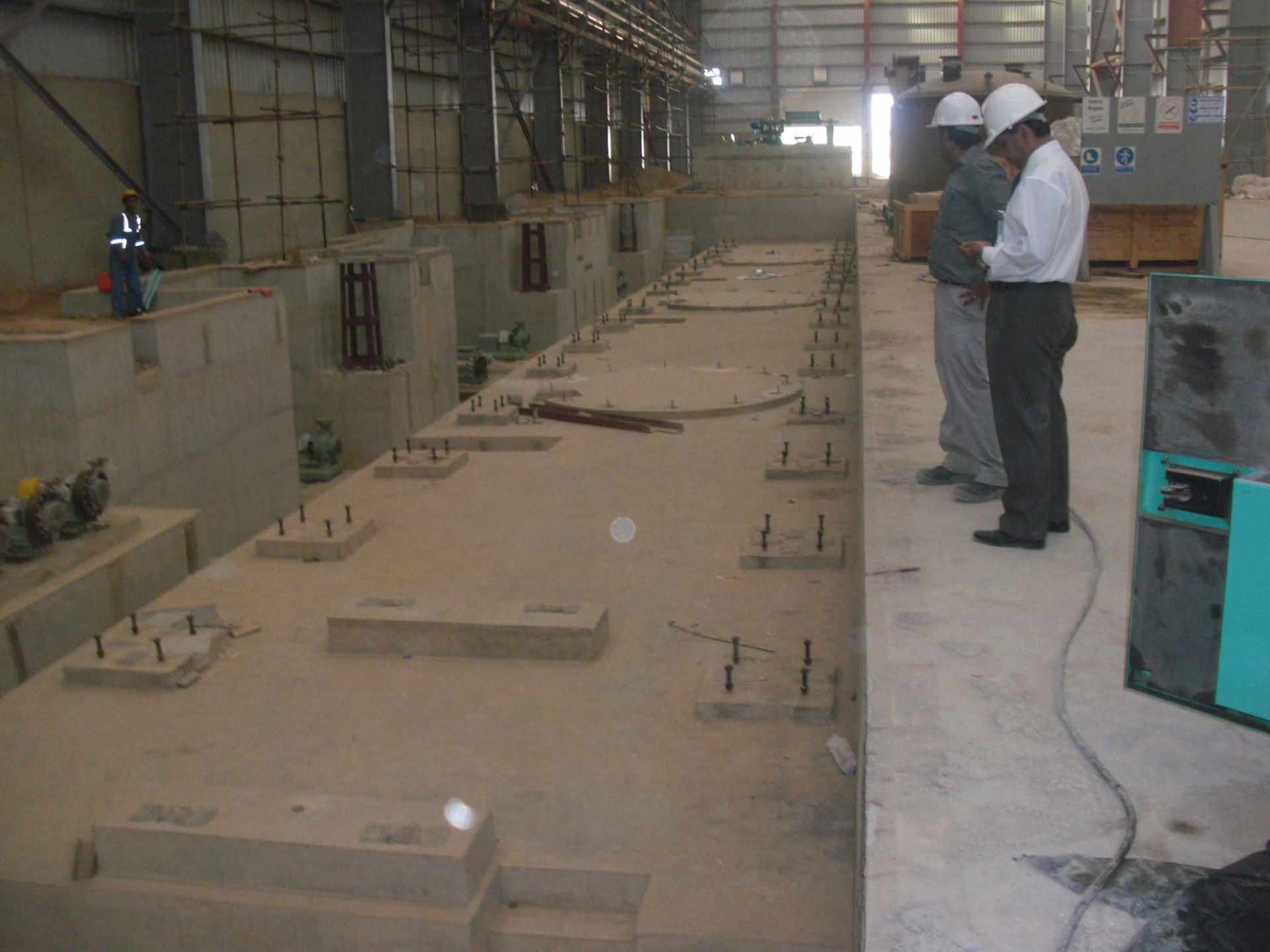

Chemical process floors

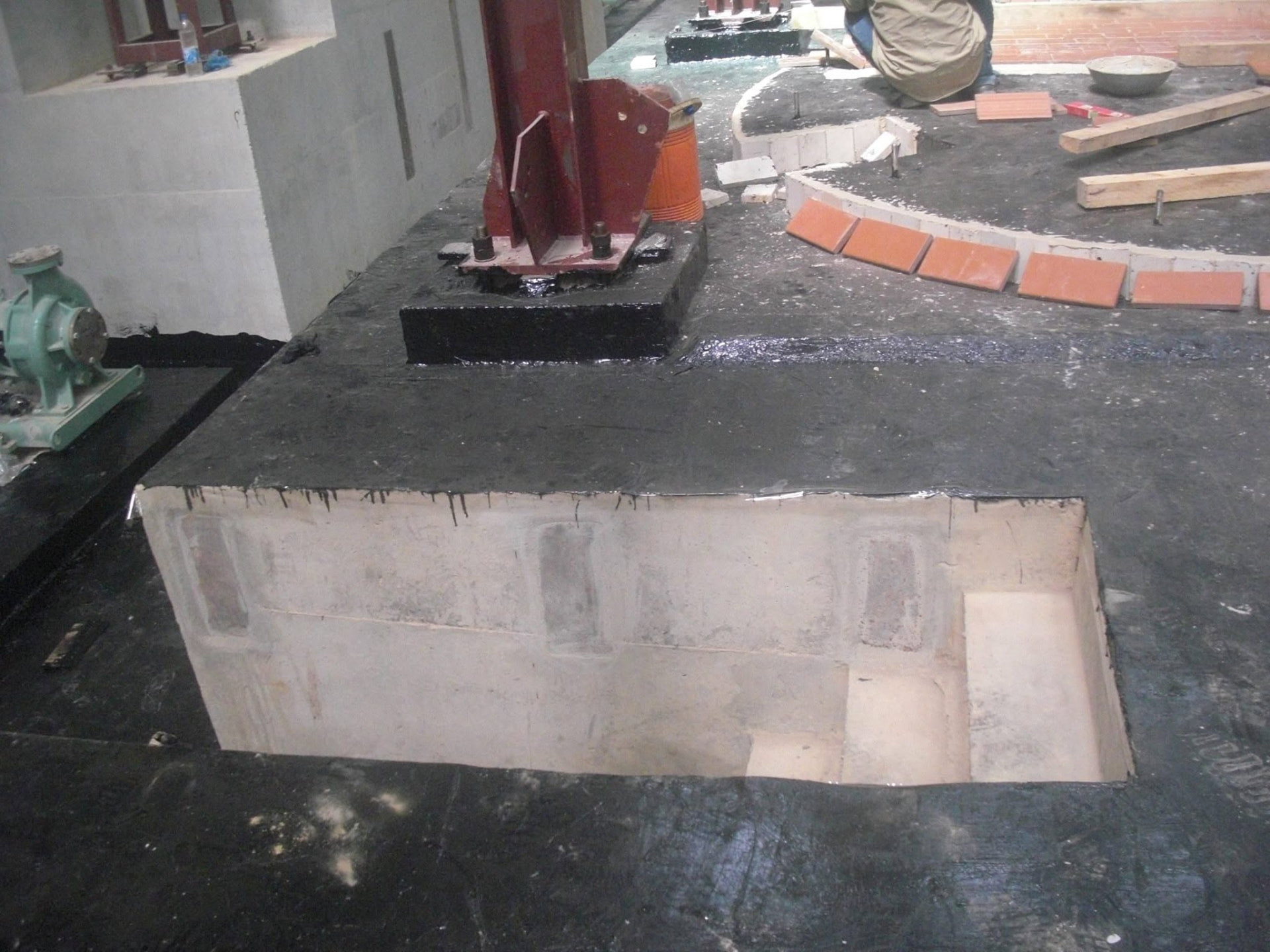

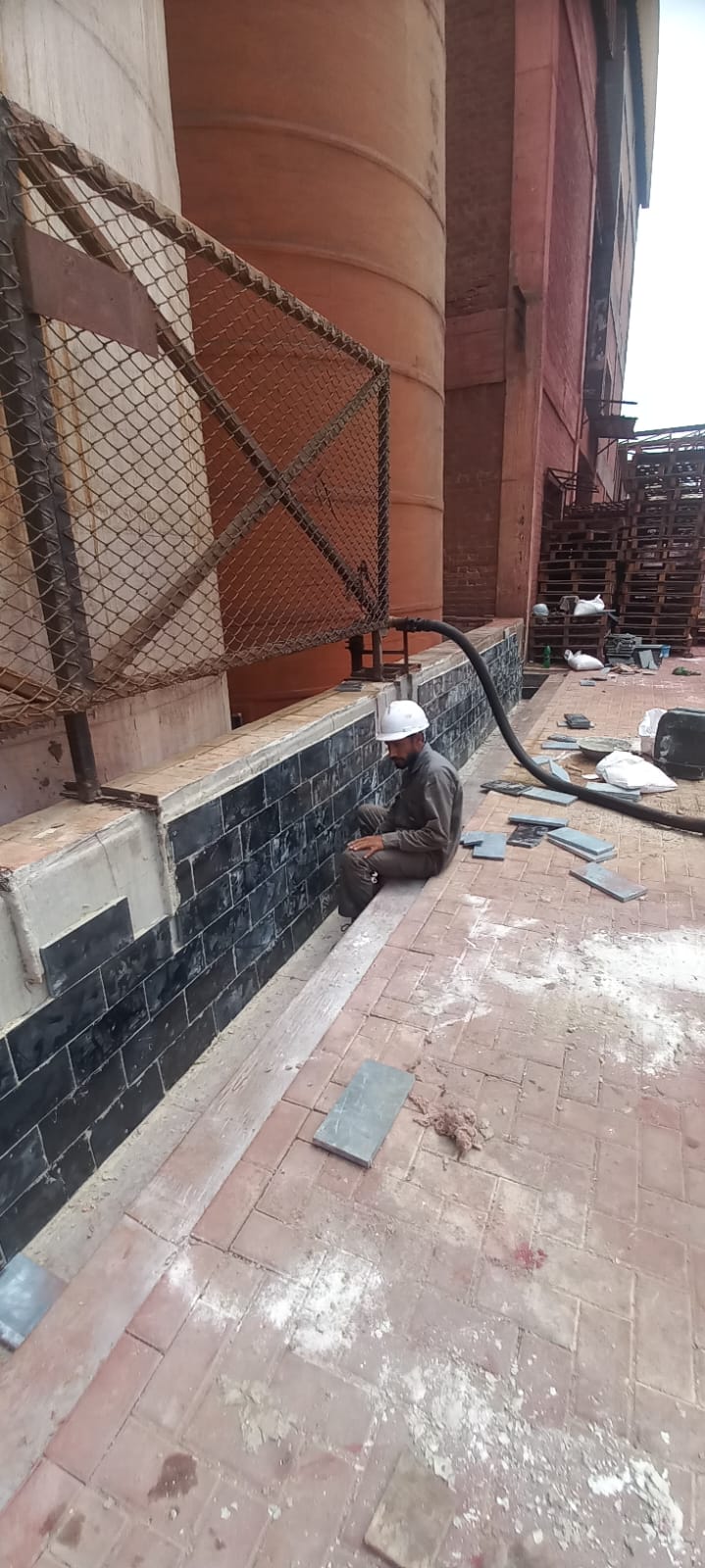

Tank and vessel foundations
Acid storage and handling areas

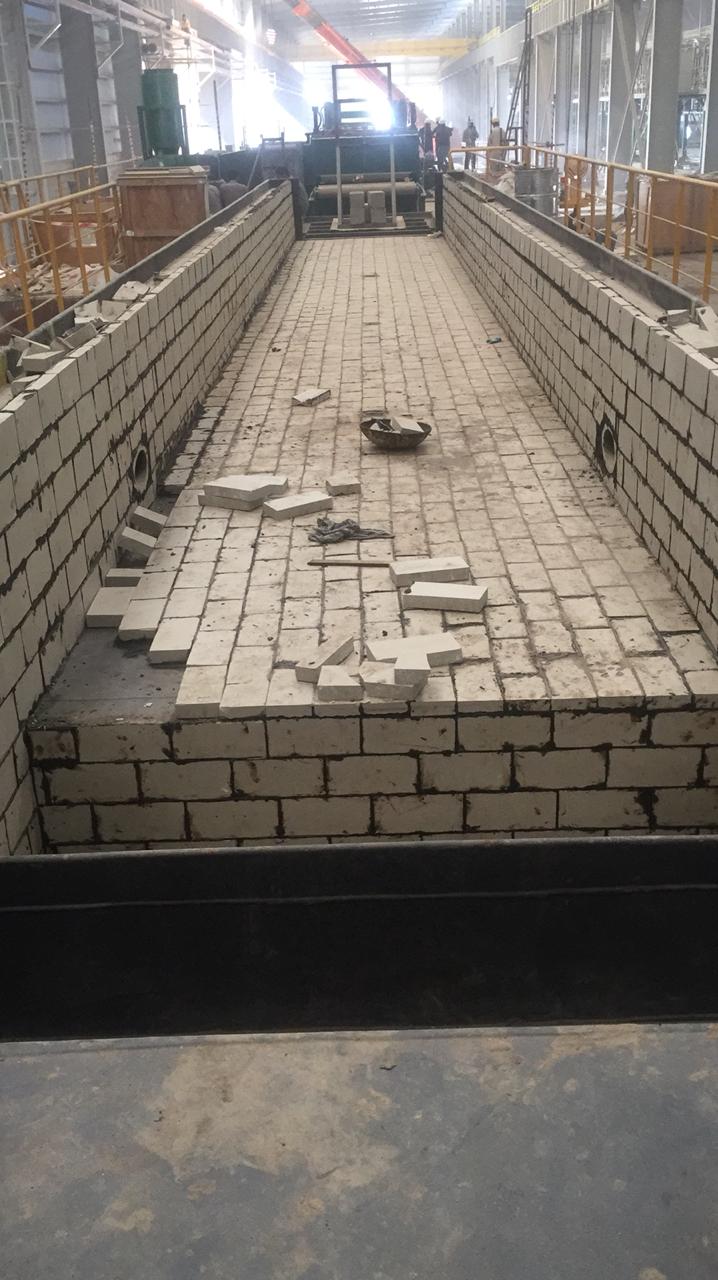

Drains, channels and sumps
Pickling and galvanizing areas
Fertilizer and process plants
Acid proof tiling FAQ
Planning a chemical-resistant floor
Chemical duty
Substrate
System build
Inspection
What is an acid proof tiling system?+
It is a layered industrial protection system designed around chemical exposure. Rubber Tech Plus applies rubber coating, acid-proof cement and acid-resistant tiles or bricks over a properly prepared substrate.
Where can acid-resistant tiles be installed?+
Typical applications include chemical floors, tank foundations, drains, channels, sumps and process areas, subject to the substrate and operating conditions.
Why is rubber coating applied below the tiles?+
The rubber coating forms the underlying protective barrier in this system, while acid-proof cement bonds the tile layer and the tiles provide a durable working surface.
How is the tile and cement system selected?+
Selection considers the chemical media and concentration, temperature, traffic, substrate, drainage, joints and required maintenance access.
Can existing industrial floors be upgraded?+
Potentially, after the existing surface, contamination, cracks, falls and structural condition have been inspected and prepared appropriately.
What should I share for a quotation?+
Send the area and location, process chemicals, temperatures, substrate condition, drainage details, shutdown window, drawings and clear project photographs.
